Self Loading Concrete Mixer Manufacturer

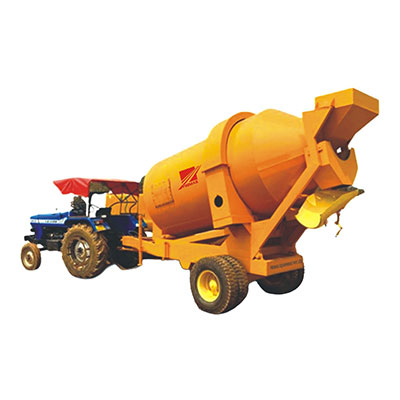

What is a Self-Loading Concrete Mixer?
A Self Loading Concrete Mixer (SLM) Machine is a versatile, multi-functional machine designed to automatically load, mix, and transport concrete to various construction sites. As the name suggests, these machines can self-load raw materials, mix concrete in transit, and deliver it precisely where it’s needed—reducing labor and time at construction sites.
These machines are equipped with a rotating drum that allows them to mix concrete on the move. The drum, typically reversible or tilt-type, is mounted on a chassis frame with an operator’s cabin, making it easy for one operator to manage the entire process. The operator can load precise amounts of ingredients such as cement, sand, and aggregates into the drum using a hydraulic bucket loader. The water dispensing unit ensures the correct water-to-material ratio is maintained for optimal mixing.
Specifications:
- Capacity: 4.3 and 2.2 cum
- Engine: Water Cooled 110 HP@ 2500 RPM
- Chassis: High Tensile Steel Welded Box Type Connection
- Hydrostatic: Drum Drive and Transmission Four wheel drive with power steering Hydraulic Disc Brake Self priming non-corrosive water pump with digital flow meter On Board Integrated weighing system with printer
- Electrical System: Battery 12V, 135 Amp-Hr
Heavy Duty floating type axle
Closed Cabin with wiper
Key Features of Self Loading Concrete Mixer Machines
- Highly Efficient: The Self-Loading Concrete Mixer enables a single operator to manage batching, mixing, and transportation of concrete. This significantly reduces manual labor and improves efficiency on-site.
- All-in-One Solution: These machines combine several construction processes—loading, mixing, and transport—into a single unit, making them ideal for narrow or congested construction sites.
- High Mobility: With options for both 2WD and 4WD, Self-Loading Concrete Mixers offer superior maneuverability, especially in rugged terrain.
- Easy to Operate: The machine’s intuitive controls and compact size make it ideal for working in tight spaces while ensuring the operator can perform all tasks with minimal effort.
- Durable Design: Built with a high tensile steel chassis, these machines are robust, durable, and capable of withstanding the harsh demands of construction sites.
Product Specifications and Capabilities
- Capacity: Available in different sizes, including 4.3 cum and 2.2 cum, for various project needs.
- Engine Power: Typically powered by a water-cooled 110 HP engine (at 2500 RPM), offering efficient operation and robust performance.
- Hydraulic System: Equipped with a hydrostatic drum drive and four-wheel drive, providing excellent traction and smooth operation.
- Braking System: Features hydraulic disc brakes for superior control and safety.
- Onboard Technology: Includes an integrated weighing system with a digital flow meter for precise ingredient measurements, along with a built-in printer for tracking concrete batches.
- Heavy-Duty Axle and Closed Cabin: Designed for comfort and durability, with a floating-type axle and a closed cabin with wipers for all-weather operation.
Benefits of Using a Self Loading Concrete Mixer Machine
- Increased Productivity: The ability to load, mix, and transport concrete all in one operation saves valuable time and reduces the need for multiple machines or labor.
- Cost-Efficiency: With a single operator handling the entire process, construction sites see a reduction in labor costs and time spent on manual mixing and transportation.
- Superior Mobility: The 4WD option allows the mixer to navigate rough and uneven terrain, ensuring that concrete can be delivered even in difficult-to-reach areas.
- Compact and Lightweight: Many models, like the mini size 500L self-loading concrete mixer, offer an excellent capacity-to-size ratio. Their compact size makes them easy to transport between different job sites, ideal for smaller construction projects.
- Environmental Friendliness: With low fuel consumption and simple engine design, these mixers are environmentally friendly, offering energy-efficient solutions for construction.
In summary, a Self Loading Concrete Mixer Machine is a state-of-the-art solution for mixing, batching, and transporting concrete. It combines convenience, efficiency, and durability, making it an indispensable tool for modern construction projects. Whether you’re working in tight spaces, rough terrain, or need frequent mobility, the Self-Loading Concrete Mixer offers unmatched flexibility and performance.
